High Corrosion Protection

Colier Stabil D-3G HCP

Domeniu de utilizare

Pentru instalatiile tehnice utilitare in industrie, constructii civile si in domeniul comunal.

Livrare

Marimile de la 15 la 129 mm au pe parte articulatiei piulite sudate pentru suruburile de prindere. Surubul de prindere este premontat pe partea pivotanta si este asigurat impotriva pierderii.
De la marimea 133 mm suruburile de prindere si piulitele lor sunt atasate. Colier cu piulite sudate 3G.

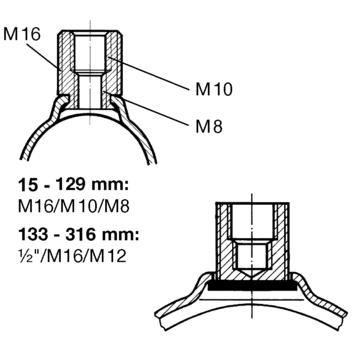

Posibilitati multiple de conectare cu ajutorul filetului exterior al piulitei 3G si a adaptorului - vezi cap. Adaptor IG/IG.

Montare

FM-Größen 1" bis 4" sind nur mit ≥ M10 zugelassen.
Für FM-Anwendungen ist mindestens M10 zu verwenden.
Für VdS-Anwendungen > 2" bis 4" ist mindestens M10 zu verwenden.

Date tehnice

Gama de prindere
[mm]
sarcina max.
admisa (tractiune)
10 - 30 2,0 kN
31 - 129 5,0 kN
133 - 173 8,0 kN
176 - 316 12,5 kN

Material:
Otel, HCP

Aprobari (certificari)

Atesta VdS Nr. G4920027, Certificare FM

Gama prindere
[mm]
DNMaterial
b x s
[mm]
Conect. filetatB
[mm]
G
[kg]
Amb.
[Buc]
Art.Nr.
10 - 1425 x 2,0M16/M10/M8600,0750 113832
15 - 193/8"25 x 2,0M16/M10/M8570,0750 112216
20 - 241/2"25 x 2,0M16/M10/M8630,0850 112217
25 - 303/4"25 x 2,0M16/M10/M8690,0850 112218
31 - 35 *1"30 x 2,5M16/M10/M8740,1250 112219
36 - 41 *30 x 2,5M16/M10/M8810,1350 113833
40 - 45 *1 1/4"30 x 2,5M16/M10/M8850,1350 112220
48 - 53 *1 1/2"30 x 2,5M16/M10/M8940,1550 112221
54 - 59 *30 x 2,5M16/M10/M81010,1650 112222
60 - 65 *2"30 x 2,5M16/M10/M81080,1750 112223
67 - 72 *30 x 2,5M16/M10/M81140,1850 112224
76 - 81 M *2 1/2"30 x 3,0M16/M10/M81370,2825 115767
82 - 87 M *30 x 3,0M16/M10/M81430,2925 115768
88 - 93 M *3"30 x 3,0M16/M10/M81490,3125 115769
102 - 108 M *30 x 3,0M16/M10/M81630,3425 115770
110 - 116 M *4"30 x 3,0M16/M10/M81710,3625 115771
124 - 129 M *30 x 3,0M16/M10/M81840,3925 115772
133 - 140 *40 x 4,01/2"/M16/M122100,7410 112231
140 - 148 *5"40 x 4,01/2"/M16/M122180,7610 112232
149 - 155 *40 x 4,01/2"/M16/M122250,8110 112233
159 - 165 *40 x 4,01/2"/M16/M122350,8210 112234
167 - 173 *6"40 x 4,01/2"/M16/M122430,8510 112235
176 - 18440 x 4,01/2"/M16/M122550,9510 112236
188 - 19440 x 4,01/2"/M16/M122650,9810 112237
199 - 20540 x 4,01/2"/M16/M122761,0310 112238
207 - 21640 x 4,01/2"/M16/M122871,0710 112239
219 - 2258"40 x 4,01/2"/M16/M122961,1110 112240
244 - 25040 x 4,01/2"/M16/M123211,2310 112242
267 - 27310"40 x 4,01/2"/M16/M123441,2510 112244
278 - 28440 x 4,01/2"/M16/M123551,3510 112245
297 - 30340 x 4,01/2"/M16/M123741,4210 112246
310 - 31640 x 4,01/2"/M16/M123871,4710 112247
